1500W Continuous Fiber Laser Welding Machine For Aluminum
Product Description:
The Automatic Fiber Laser Welding Machine is the perfect solution for repairing molds. It is equipped with a powerful laser, water cooling system, and a dust-free working environment. With a power supply of 220V and a wavelength of 1064nm, it can be used to weld molds with a depth of 0.1-1.2mm. This machine is highly efficient, reliable, and cost-effective, making it an ideal tool for mold repair and restoration. Its features include precise temperature control, fast processing speed, and excellent welding quality. This machine is also easy to operate and maintain, making it a great choice for any mold repair job.
Features:
-
Good beam quality, fast welding speed.
Solid and neat Welding effffect.
Support spot, line, circular, square and arc welding.
Energy-saving, cost-saving.
| Main parts of the machine |

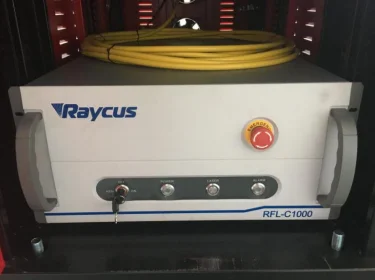

| 1.Raycus laser source The core part of the whole machine. Raycus is the best laser source brand in China With working life: 100000 hours. |  |

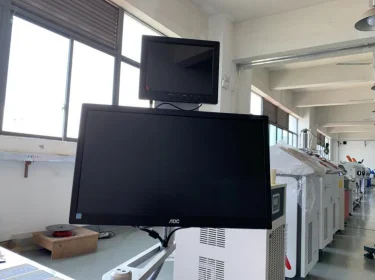

 | 2. Control PC and CCD camera Professional programming system, you can setting all the welding track on software, and machine will act accordingly. The image of the object is focused on the CCD chip through the lens, then the image will be displayed on a video display with clear picture quality, you can see the welding point clearly through CCD. |
| 3. Electric guide rail It can move up and down, left and right automatically. And it can weld irregular products. X axis is 500mm, Y axis is 300mm, Z axis is 500mm The motor we use stepping motor. |  |

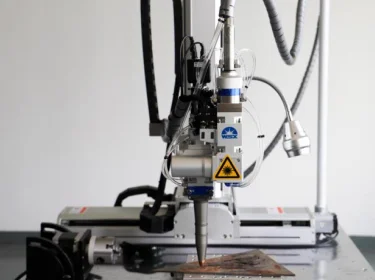

 | 4. Laser head With wobble head. The spot size can be adjusted. Smooth welding appearance. High photoelectric conversion efficiency. |

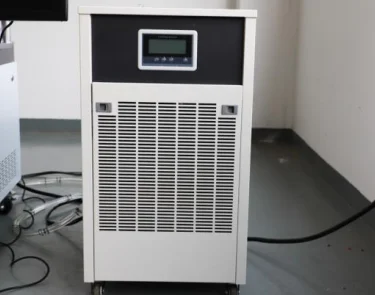

| 5. Water chiller We use 3P water chiller. Cooling system is stable, support long term working. |
|
Technical Parameters:
| Name | Parameters |
| Product Name | Mould Repair Laser Welding Machine |
| Welding Type | Fiber Laser Welding |
| Welding Accuracy | High Accuracy |
| Wavelength | 1064nm |
| Pulse Width | 0.1-20ms |
| Welding Depth | 0.1-1.2mm |
| Work Size | 500*300*300mm |
| Working Environment | Dust-free |
| Cooling System | Water Cooling |
| Weight | 470KG |
Applications:
Widely used in communications devices, IT, medical, electronics, batteries tab-lead, fiber-optic coupling devices, CRT electronic gun, metal parts, cell phone vibrating motors, clocks precision parts, automotive sheet steel optical communications industry copper parts, aluminium parts precision welding.
Product Features
Welding beam energy distribution, have the best spot for welding needs;
Applicable to all kinds of complex welding, welding of various devices and 5mm sheet;
UK imports ceramic condenser cavity, corrosion-resisant, high temperature, long life;
3M/5M optical fiber, welding flexibility and convenience;
Optional CCD camera, easy to abservation and precise positioning;
Customizable automation tools, can achive mass production;
With real-time energy-feedback, output power will be more stable.
